3. Data Entry Analysis & Editing

3.1. Course list

1. Course List Page allows user to analyze Each Course :

  • Section Name (Correct or not?)
  • Room Type (The right Room Type or not?)
  • Lecturer (Has been assigned or not? / The right lecturer has been assigned?)
  • Class Duration (Correct or not?)
  • Group (Has been assigned or not? / Correct Group?)



           Diagram 4.1.1: Data Course List Tab

Click Data and then Click Course List to open up Data Course List tab

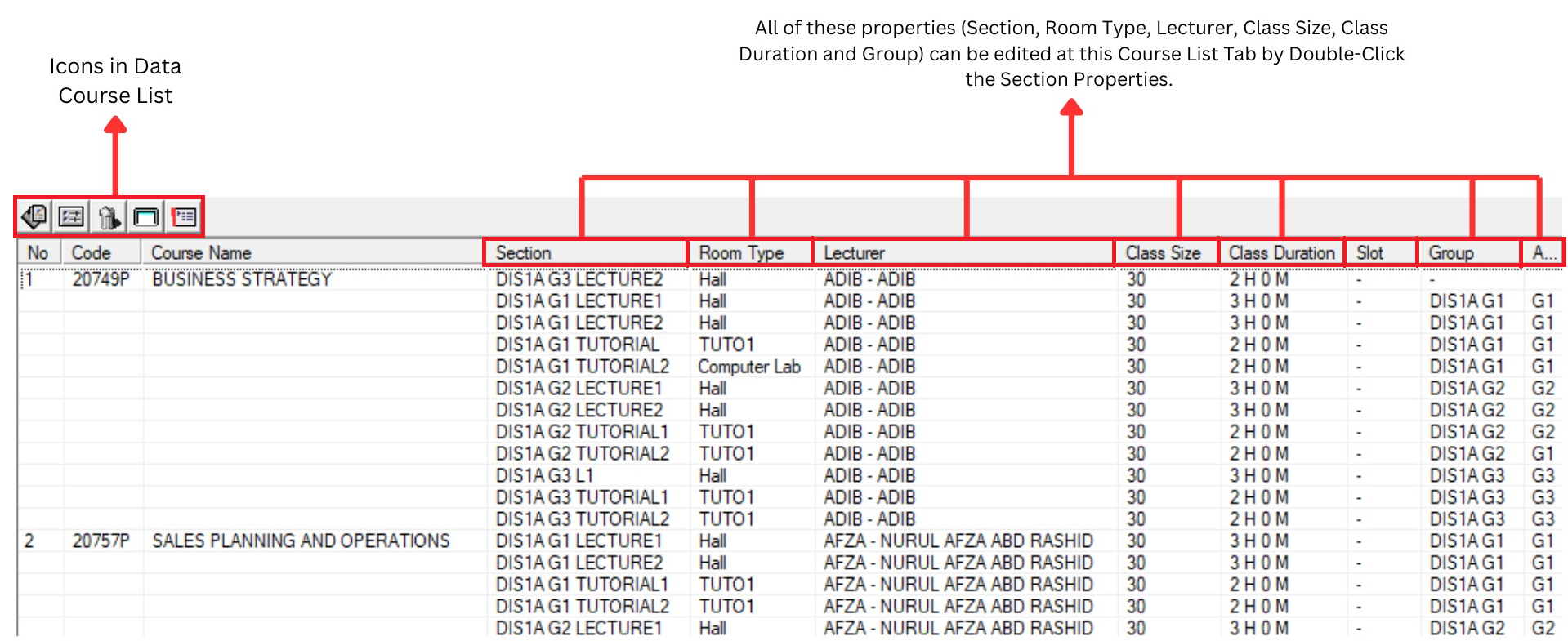

Diagram 4.1.2: Data Course List Tab


Inside Data Course List window, you will be able to see icons on the top left side.



Click this icon to add new Section


Click this icon to open up the Section Properties.

Click this icon to delete the room


Click this icon to cluster view


Click this icon to list view




Analysis the data course list

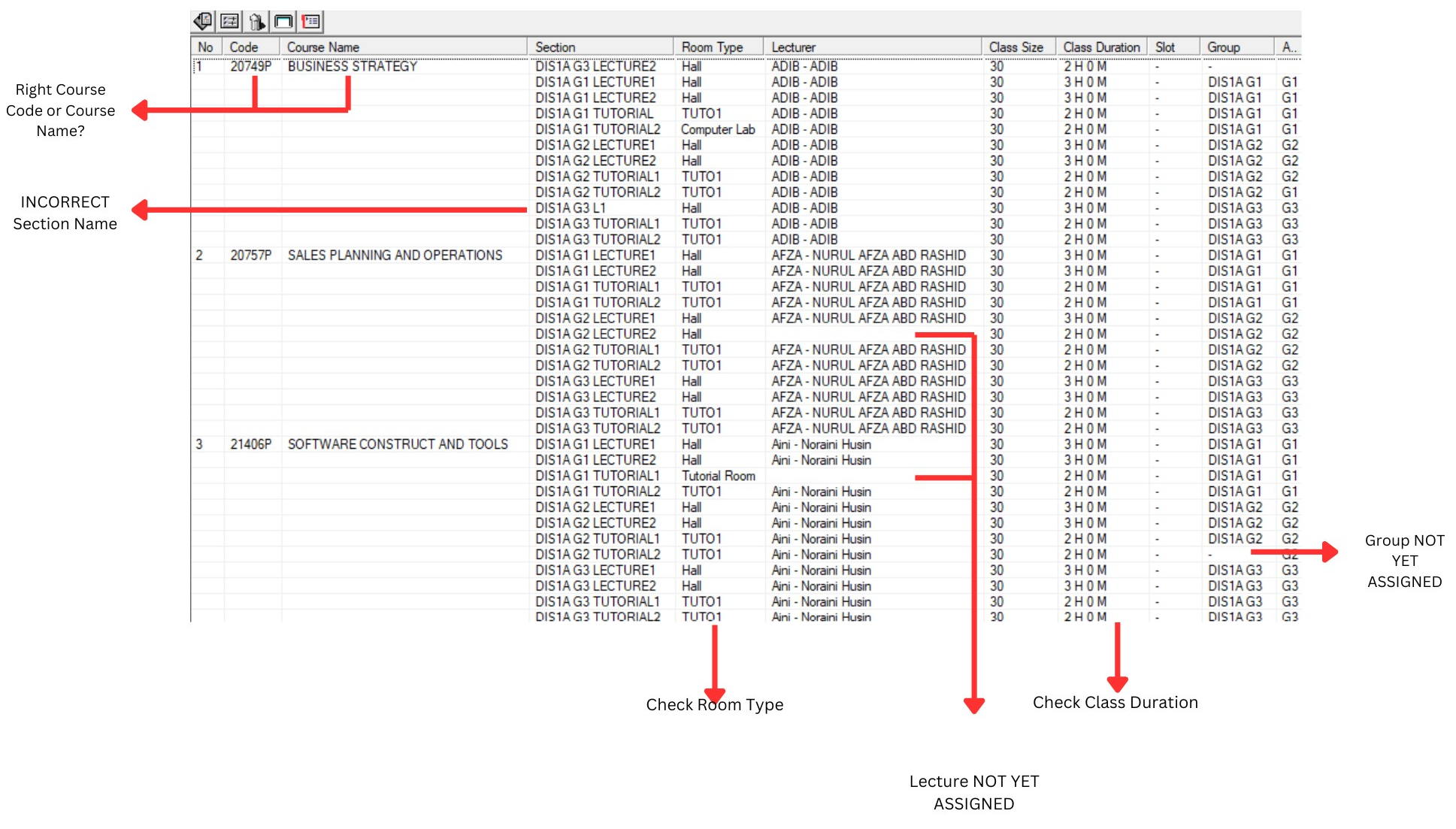

Diagram 4.1.3 : Data course list

Editing Process :

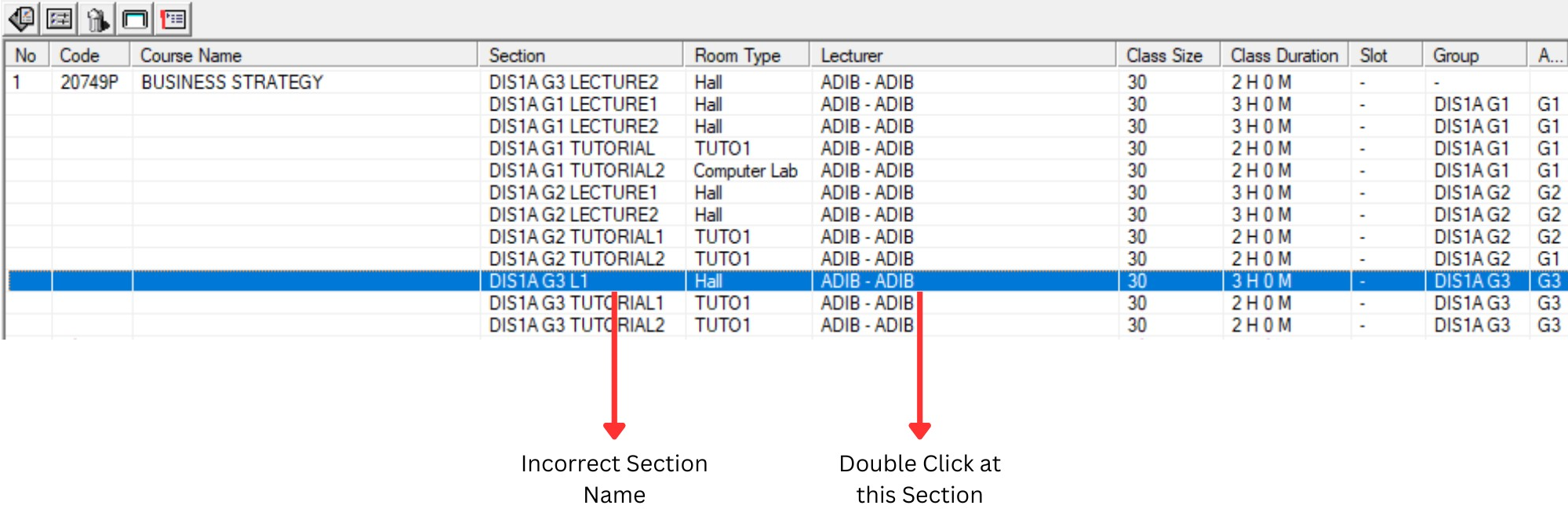

Incorrect entry can be edited easily by Double-Clicking the particular Section (Highlighted in Blue).

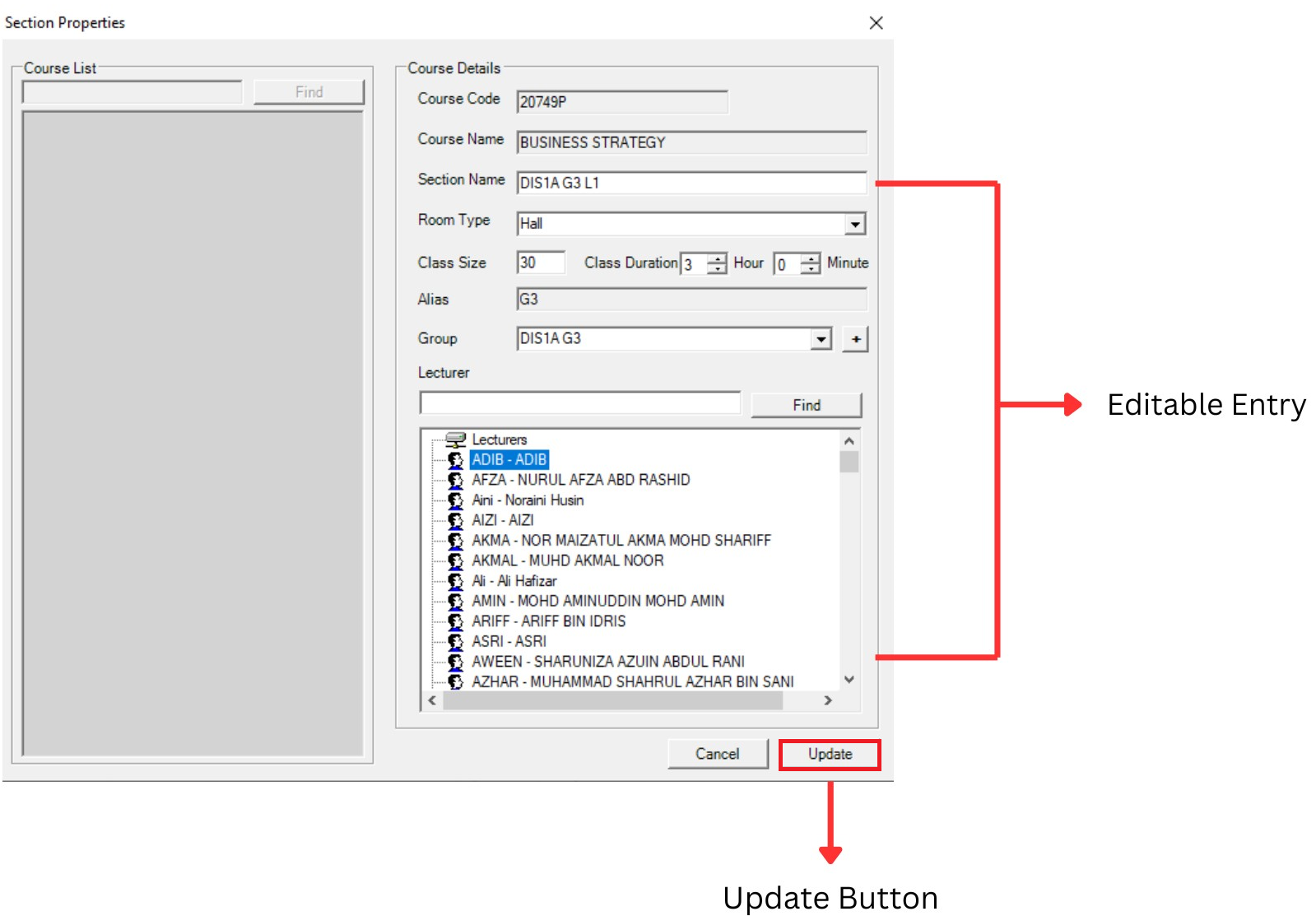

Once Section Properties Box Appear, user can make the necessary editing process.




Once editing is completed, then click on Update Button
