You can set constraints at the Data Entry. There are 2 types of constraints;

• Group Constraints
• Generate Constraints.

Group Constraints: You can set constraints from Parent folder to child folder in which settings set at Parent will automatically inherit by the child folder.

Step 1 : Getting to Set Constraints window

Step 1.a : Click Constraint Tree Tab to open up Tree Structure

Step 1.b : Double Click on any Group Folder (Yellow Folder)

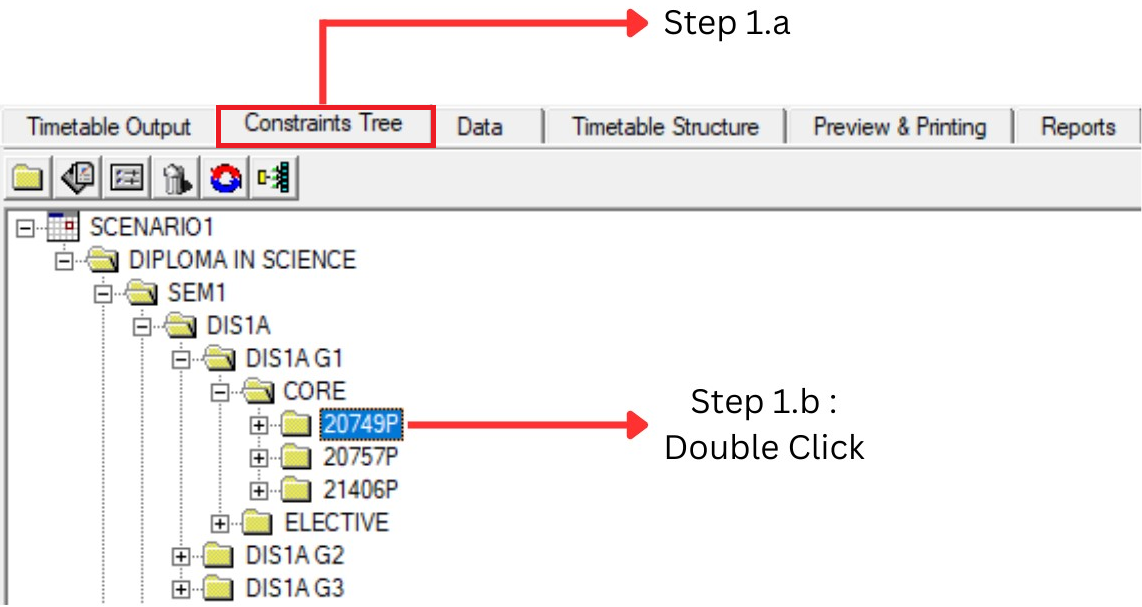

Diagram 1.4 : Getting to Set Constraints window

Step 1.c : Set Constraint window appear

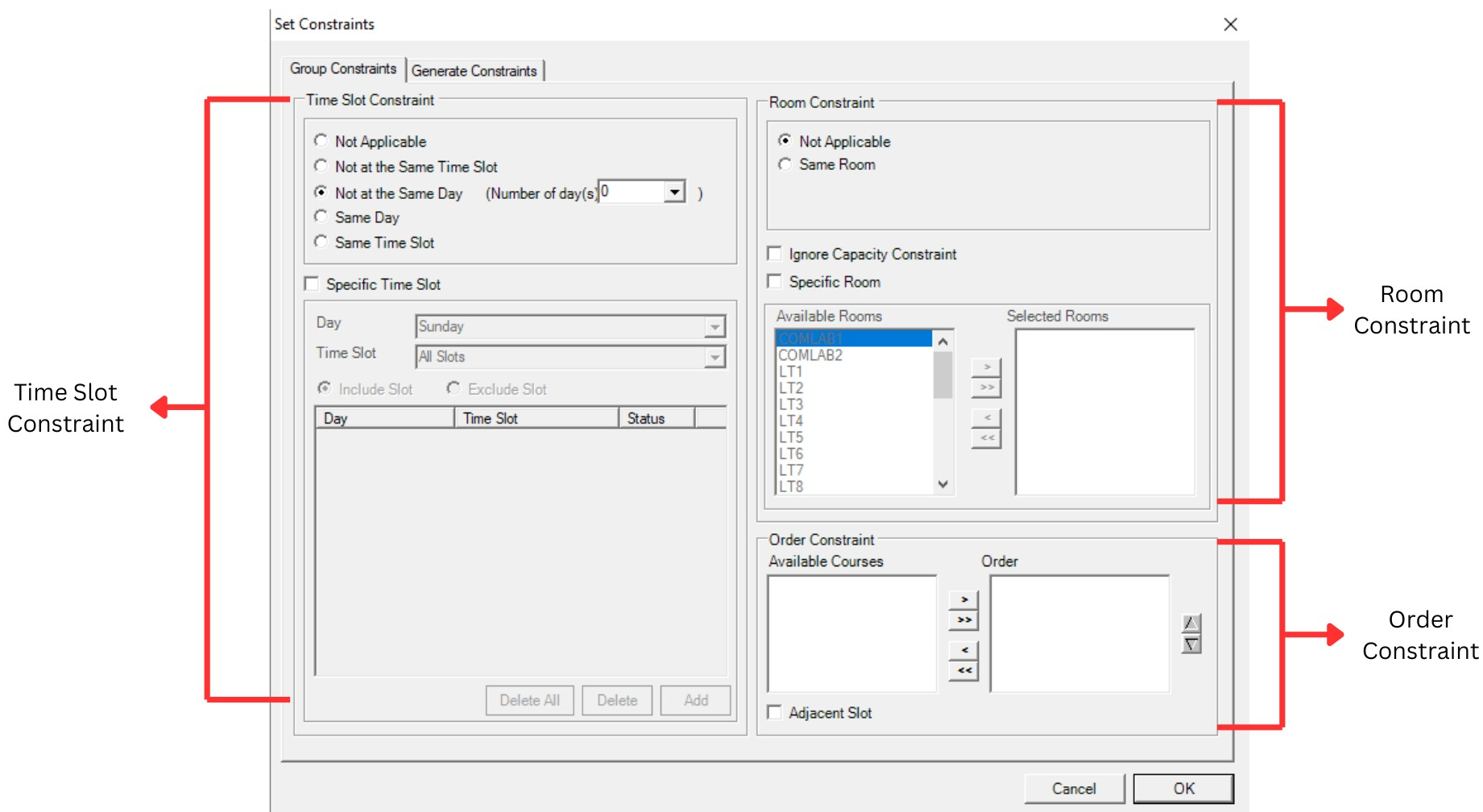

Diagram 1.5 : Set Constraints window

Step 2: Setting the Appropriate Constraint

1. Time Slot Constraint

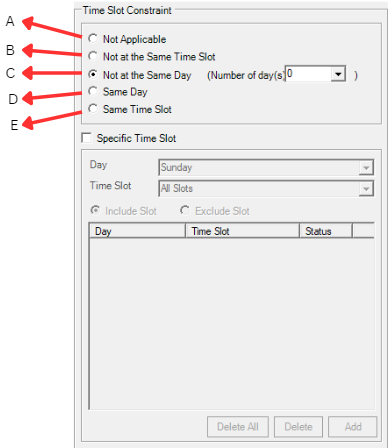

Diagram 1.6 : Time Slot Constraint

A. Not Applicable	Default Setting. It is used also when no particular Time Slot Constraint apply
B. Not at The Same Time Slot	The Child under the Folder will not clash with each other, usually use this constraint for the Same Batch of Student to avoid clashing.
C. Not at the Same Day	User normally set these constraints for courses that prefer to have the classes in different days. Example, 1st Lecture and 2nd Lecture prefer to be in different days.
D. Same Day	Normally apply at the Course Code folder
E. Same Time Slot	User can set this constraint for 2 purposes: 1. Same Time Class This setting will be set at the designated folder (SAME TIME) which is Same Time Class Folder. This is to make sure that the Sections under the Parent folder will be slotted on the same time but at different venue/room. 2. Merging Class This setting is normally being set at the designated folder (MERGE) which is Merging Class Folder. This setting will ensure that the Sections under the Parent folder will be combined (merged) into the same time and same room slot. Please Note: User need to select “Same Time Slot” and “Same Room” which is found at the “Room Constraint”. User need to click on the “Ignore Capacity Constraint” if the total number of merging class exceed any of the rooms’ capacity in room list

Diagram 1.7. Constraint for Same Time Class



Diagram 1.8 Constraint For Merging Class

F. Specific Time Slot

User can either “Include’ or ‘Exclude” the Specific Time Slot by choosing the Day and specific Time Slot before Clicking Add button.

User can add as many time slots or days according to the demand.

(Note : In order to add exclude slot, you must first include all the slots in the day)

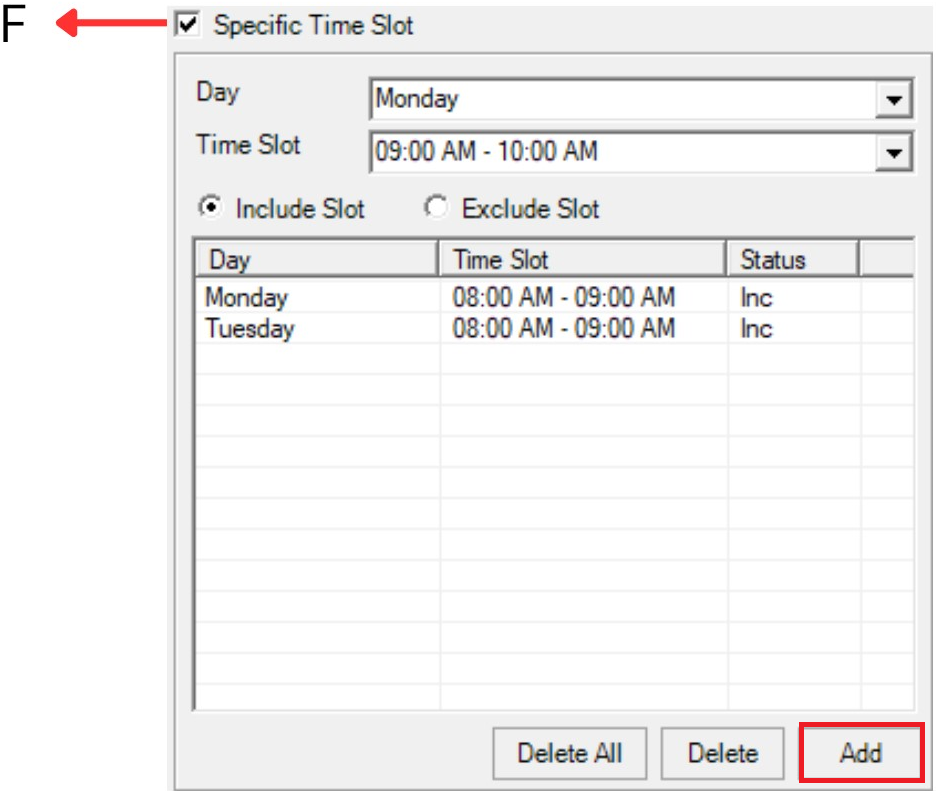

Diagram 1.9 : Specific Time Slot

2. Room Constraint

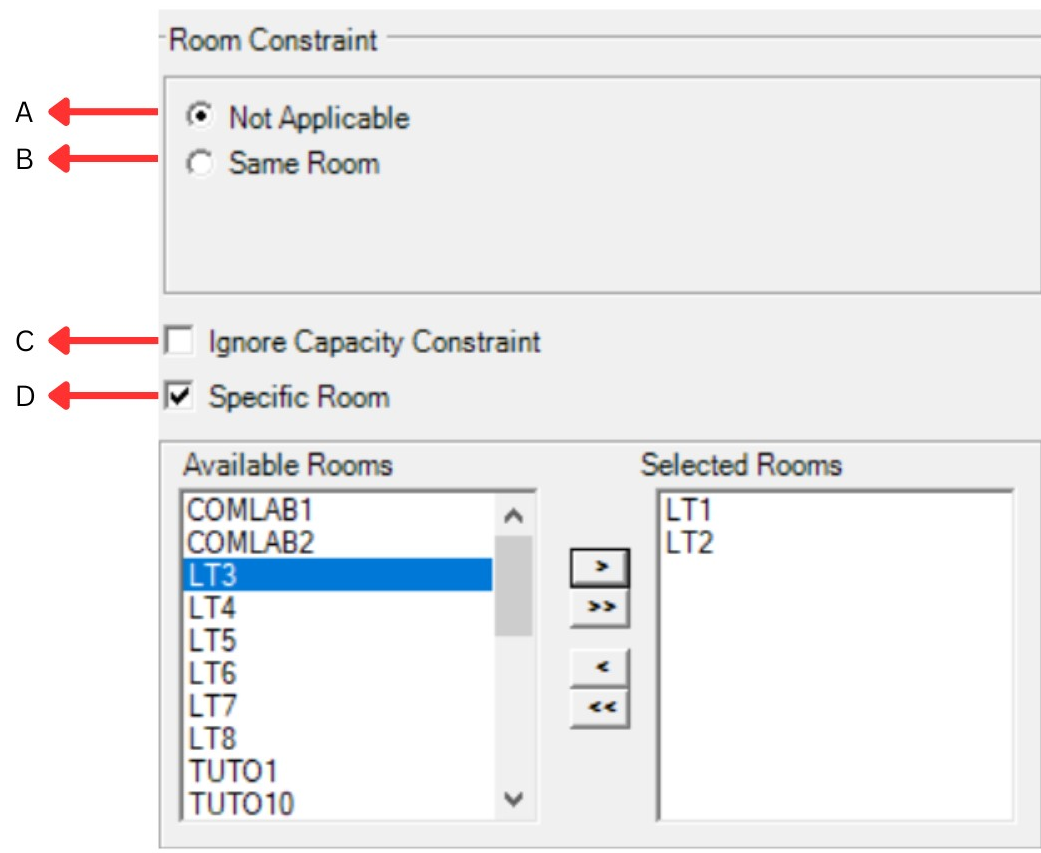

Diagram 1.10 : Room constraint box

A. Not Applicable	Default Setting. It is used also when no particular Time Slot Constraint apply
B. Same Room	This constraint setting will set all the Sections under the Parent folder to be allocated at the same room. Also it is used in the Merging class.
C. Ignore Capacity Constraint	User will use this constraint to bypass the Room Capacity in order to suit with the Class Size. If “Ignore”, the class size can fit in the classroom that has a smaller capacity.
D. Specific Room	User can select 1 or few specific rooms in the Room list. If few rooms are selected, the Sections under the Parent folder will be assigned according to the Room Type and Room Capacity from the list of selected rooms. Please Note :  : Move selected Room to the Right  : Move all Rooms to the Right  : Move selected Room to the Left  : Move all Rooms to the Left

3. Order Constraint

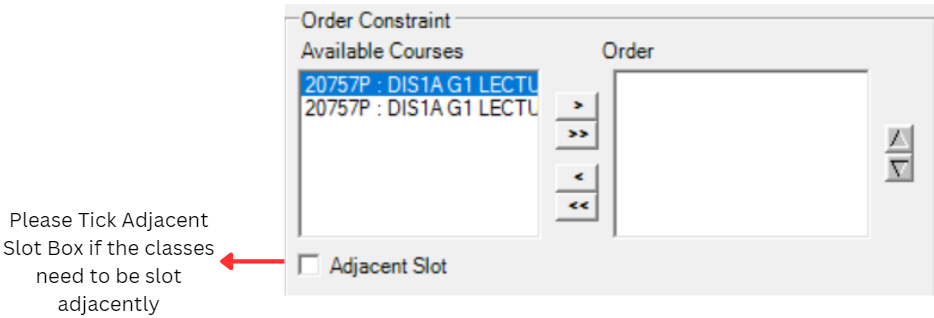

Diagram 1.11 : Order Constraint Box

User can fix the way of ordering to make sure that Lecture 1 comes first in the week before Lecture 2 by using this constraint. User needs to move the Lecture 1 first and then the Lecture 2 will be moved consecutively after that to the Box on the right side. “Adjacent” box can be checked if the user wants the 2 classes (Lecture 1 & 2) to be slot adjacently- one after another in the same day.
