1. Adding the Merge Group & Same Time Group

1.2. Same Time Group

To do same time group, you need to go to Data and select Same Time Groups List.



Diagram 1.2.1 Location of Same Time Groups List


Before creating a same time group, you need to study the icons inside the Same Time Groups Group List.





Click this icon to add new same time group.

Click this icon to add section to same time group.

Click this icon to remove section from same time group.
Click this icon to delete selected group.
Click this icon to delete All group.
Click this icon to pre-requisite data file.
Click this icon to refresh list.

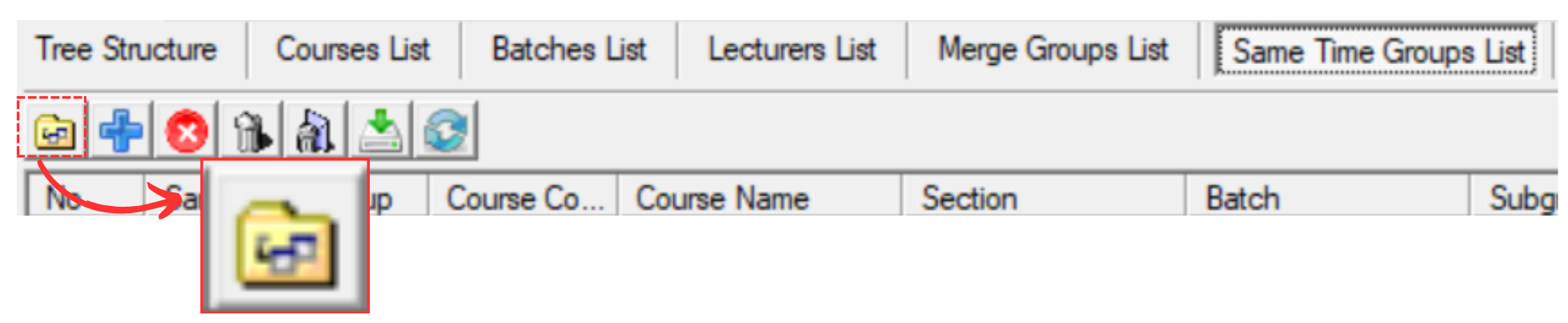

 Click  icon to add new same time group.


Diagram 1.2.2 Location of Add New Same Time Group Icon

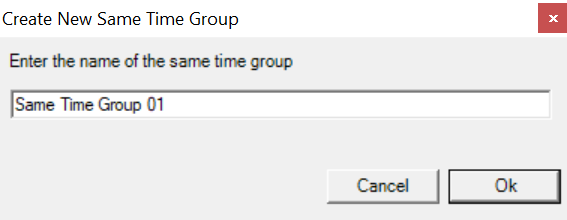

A popup will appear, asking you to write the Same Time Group name. Once done, click Ok.



Diagram 1.2.3 Create New Same Time Group

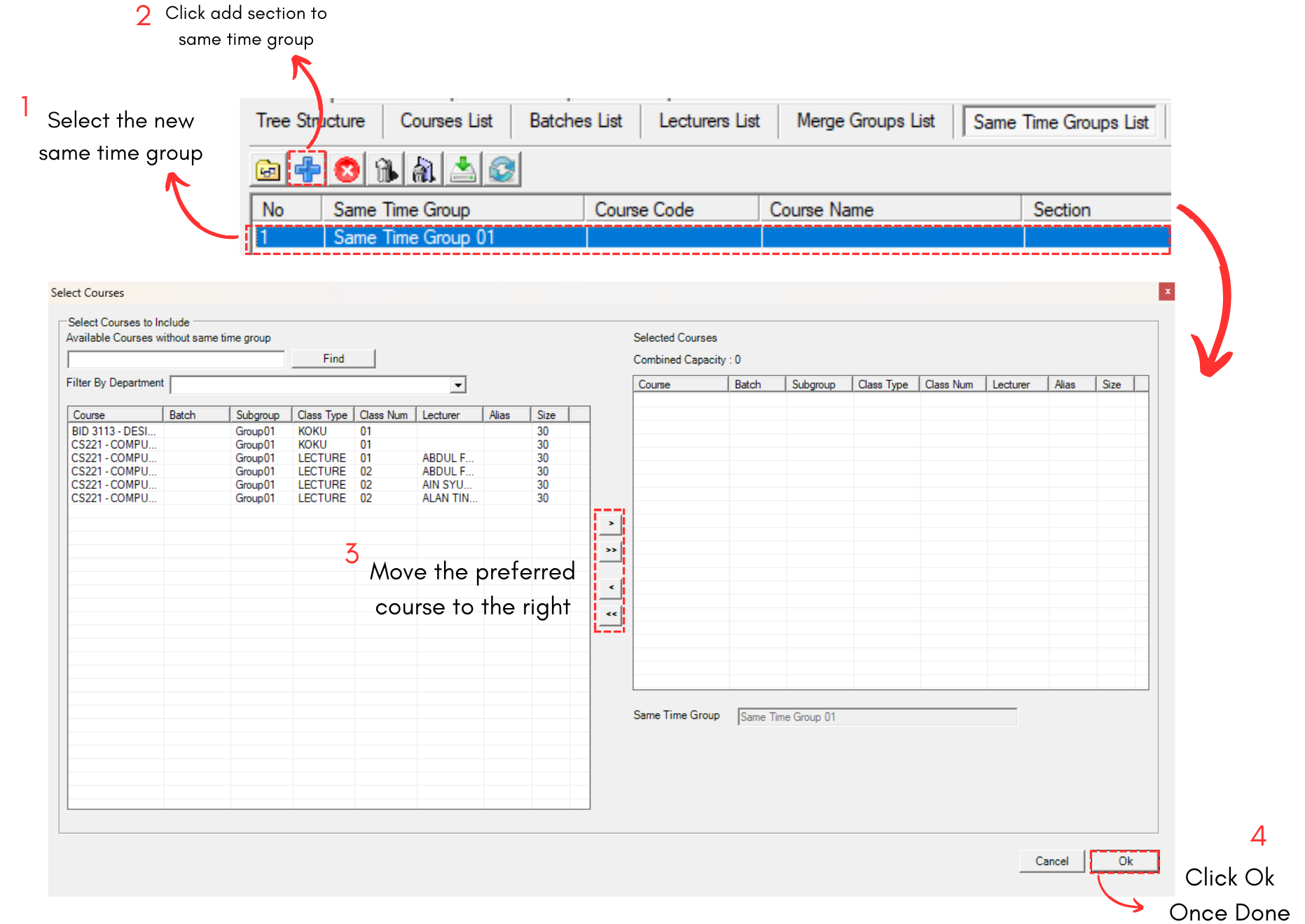

Once you have created the same time group, select the same time group and click add section to same time group  icon to add sections inside it.


Diagram 1.2.4 Add Section into the Same Time Group



This is how it will looks like when you move courses to the right.


Diagram 1.2.5 Courses moved to the right

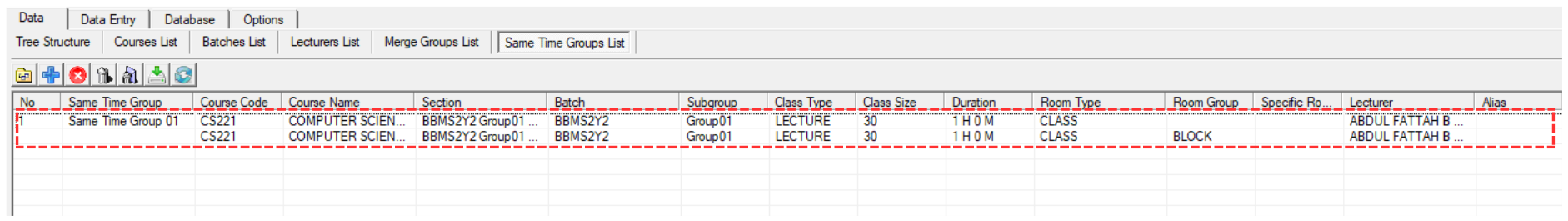

After you click Ok, the courses will appear under the selected same time group.


Diagram 1.2.6 Courses under a Same Time Group
